LCK Series

Intelligent Factory Solution

The laser cutting automatic material library consists of a material storage system, an automatic loading and unloading system and a production line operation monitoring system. It can be equipped with 1-3 laser cutting machine tools.
Intelligent Factory Solution
LCK Series
The laser cutting automatic material library consists of a material storage system, an automatic loading and unloading system and a production line operation monitoring system. It can be equipped with 1-3 laser cutting machine tools.

DOWNLOAD CENTER

PRODUCT DATA




Product Description

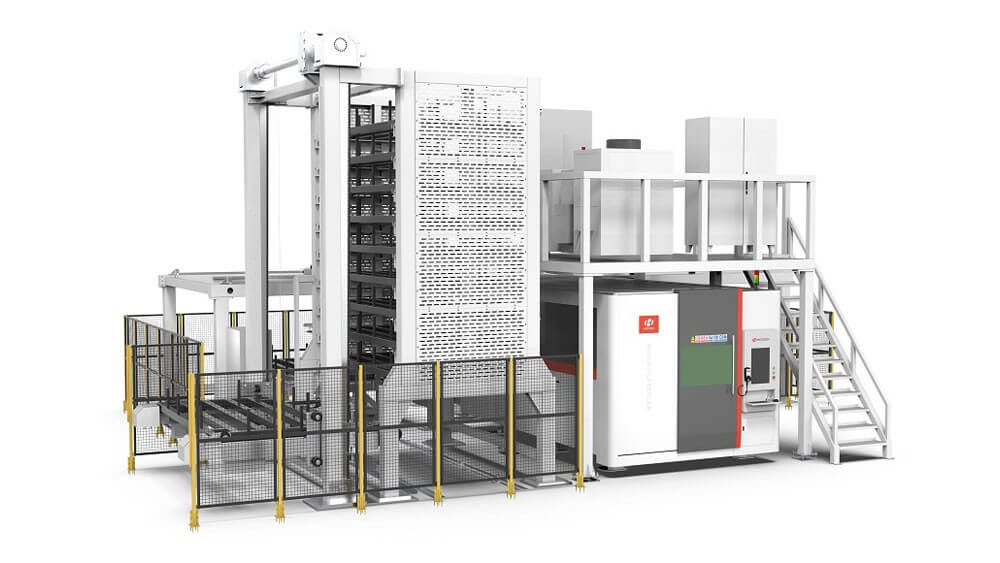

HGTECH Laser Cutting Flexible Production Line includes multiple sets of laser cutting automated material warehouses
Each set of laser cutting automated material warehouse consists of a material warehouse system, an automatic loading and unloading system, a production line operation, and a monitoring system, which can be adapted to 1-3 laser cutting machine tools.
The automated material warehouse can automatically store and retrieve materials without direct human intervention.

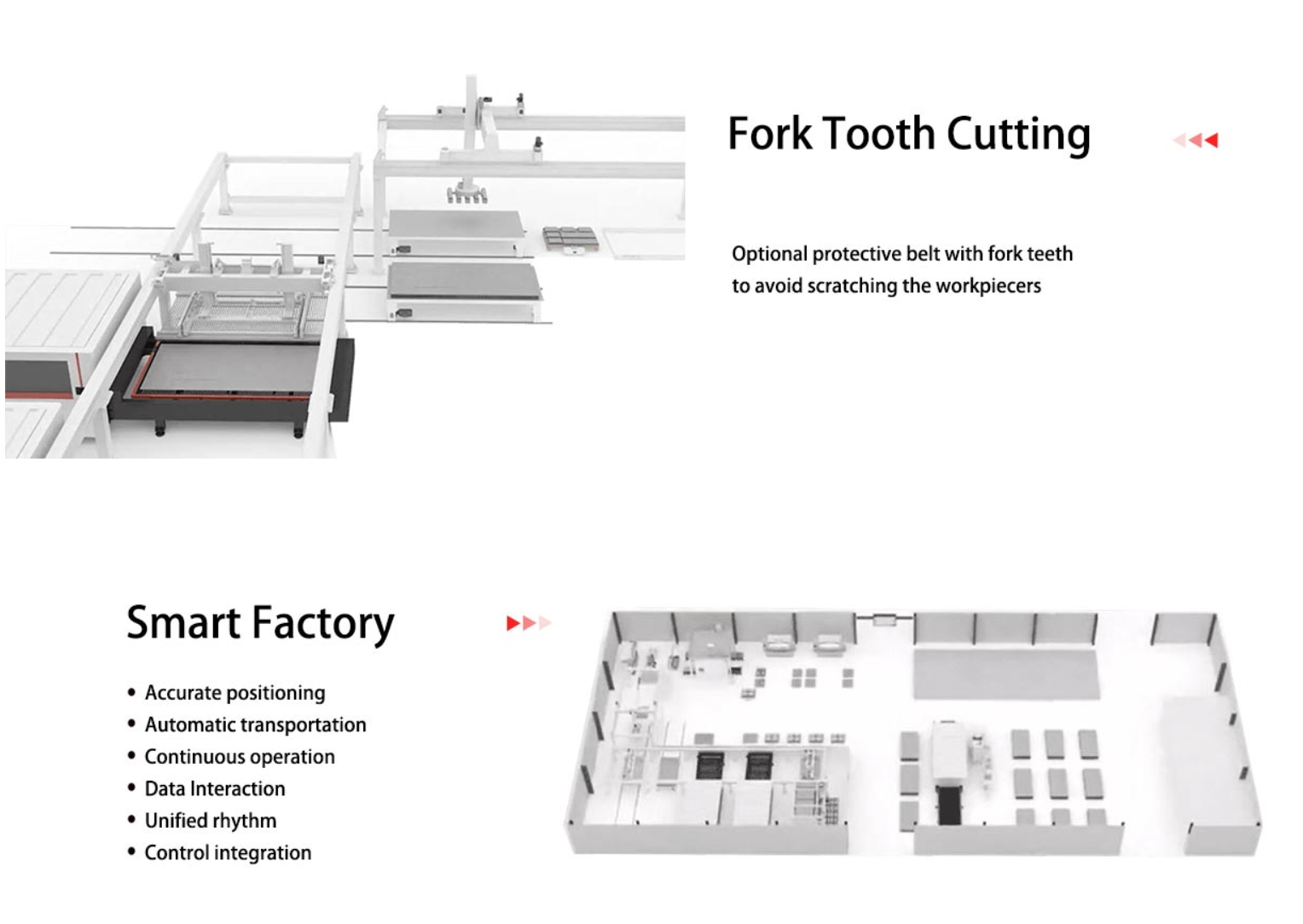

Modular design / Intelligent Control / Achievable MES System Network
Management

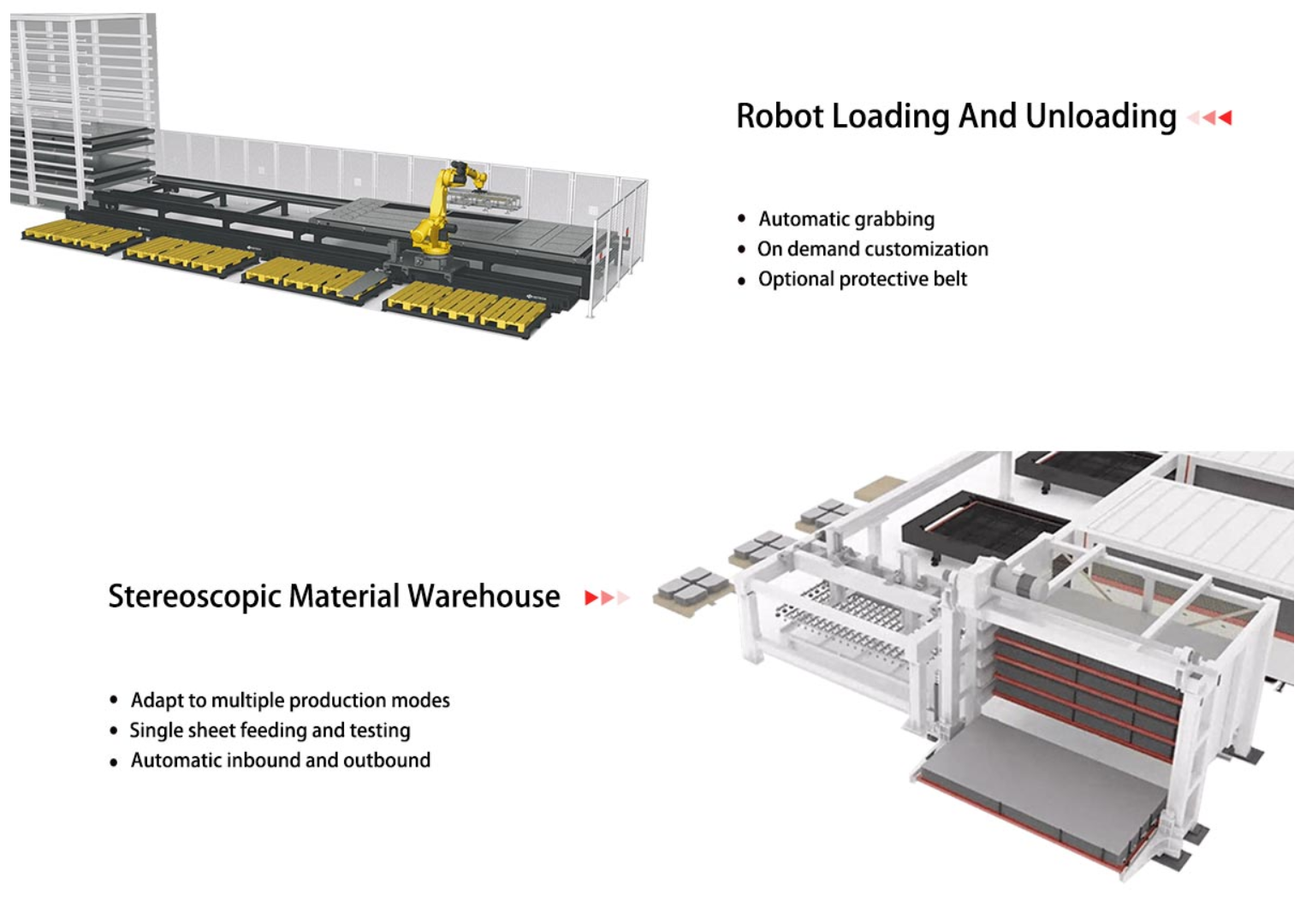

-Single Suction / Automatic Split / Laser Cutting / Laser Marking
-Automatic Loading or Unloading / Sorting / Stacking /In or out of the
Library / Storage / Transfer / Waste Cutting



Extended Functions





















ModelLCK Series
StructureGantry type loading and unloading
Applicable materialsCarbon steel, stainless steel, aluminum alloy
Max sheet size3000*1500mm4000*2000mm6000*2000mm
Max layer151010
Sheet thickness

≤20mm

≤16mm≤10mm
Sheet weight≤720kg≤1000kg≤1000kg
Max load per layer5T
Max loading height (carbon steel)150mm80mm60mm
Loading car weight5T
Stacked weight of products3T
Loading methodCrane or forklift
Unloading methodUnloading car or conveyor
Standard cycle time260s300s300s
Lifting speed15m/min
Pallet in and out speed10m/min
Horizontal speed of loading and unloading system40m/min
Vertical speed of loading and unloading system20m/min
Running speed of loading and unloading trolley15m/min
Operating speedTouch screen of operation terminal through laser cutting equipment
Max power of the whole machine45KW63KW65KW
Compress air0.5-0.7Mpa

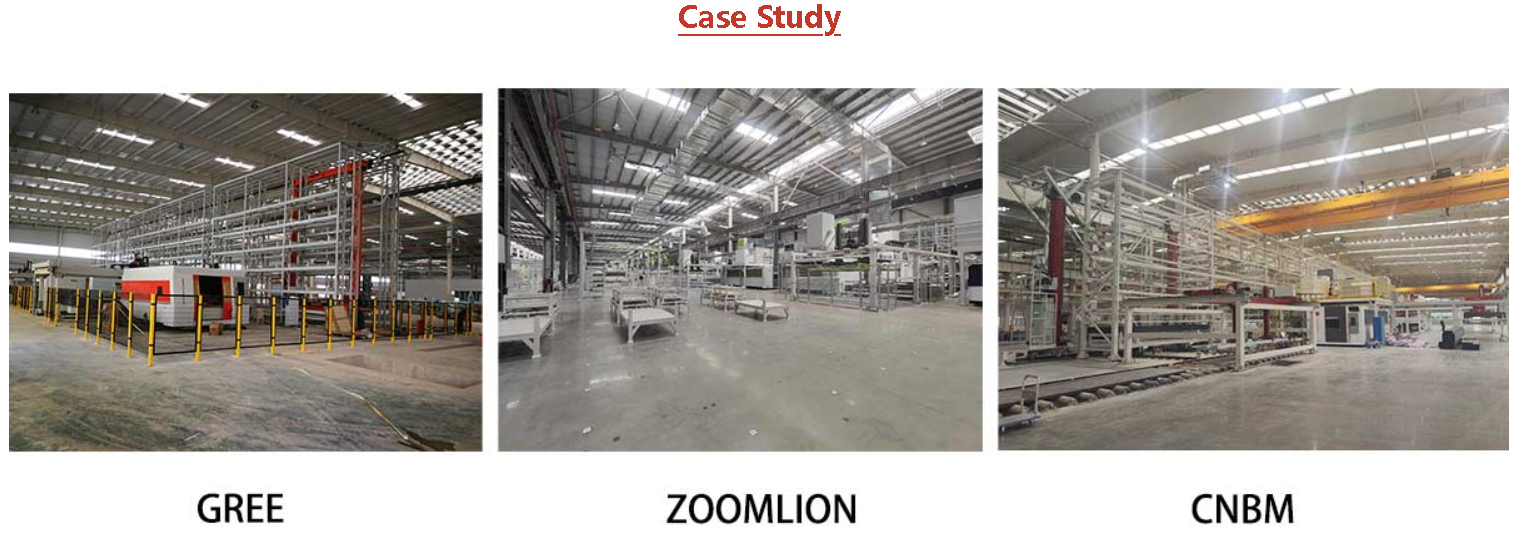

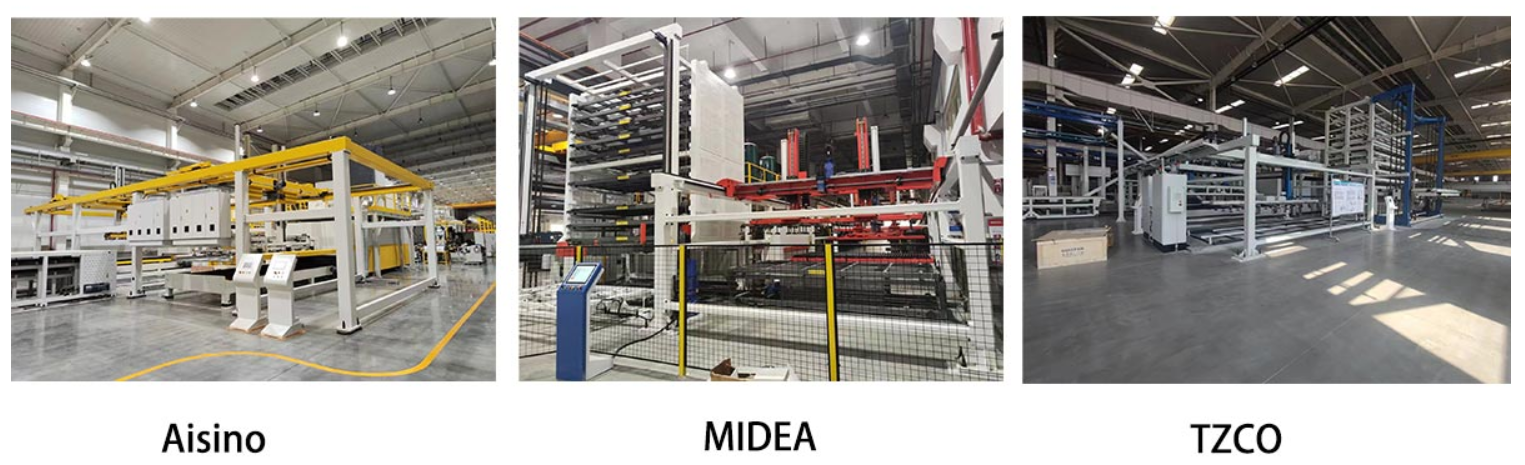

SAMPLES

/
