LSF 3D Series

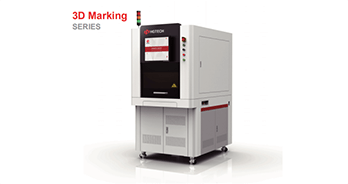

Fiber 3D Laser Marking Machine

With the first-class marking technology, it can work on sculptured surface without defocus. Configured with specialized 3D vibrating mirror, the 3D dynamic laser marking can control the software and hardware, and the laser beam can mark on arbitrary 3D sculptured surface.
Fiber 3D Laser Marking Machine
LSF 3D Series
With the first-class marking technology, it can work on sculptured surface without defocus. Configured with specialized 3D vibrating mirror, the 3D dynamic laser marking can control the software and hardware, and the laser beam can mark on arbitrary 3D sculptured surface.

DOWNLOAD CENTER

PRODUCT DATA


With the first-class marking technology, it can work on sculptured surface without defocus. Configured with specialized 3D vibrating mirror, the 3D dynamic

laser marking can control the software and hardware, and the laser beam can mark on arbitrary 3D sculptured surface.


Features:
1. High precision of 3D positioning technology

2. With friendly operation interface,

3. it is suit for many file formats, such as dxf, plt, cnc, step, iges, etc;
3. High electro-optic conversion efficiency

4.long life

5. easy maintenance;

6. Fast marking speed

7. high processing efficiency.

8. high-speed focusing and scanning system, short pulse, high-peak power



Application:

It’s suitable for all kinds of metals and nonmetals laser marking on 3D surface. It’s widely used in mobile manufacture, cubic circuits, medical equipments, moulds, 3C electronics, auto parts, electronic communication, etc.






Laser ParameterLaser SourceFiber laser
Wavelength1064nm
Output Power20W
Laser Beam Quality M2＜1.2
Pulse Repeatable Frequency10kHz~200kHz
Cooling MethodAir cooling
Processing ParameterFocusing LensStandardOptional
Processing Range140×140×60mm160×160×70mm
Lens Focal Length200mm254mm
Max Speed in X-Y Axis6m/s
Max Speed in Z Axis4m/s @45°
Min Linear Width150μm
Positioning Accuracy25μm
Contraposition Accuracy20μm
Whole Machine ParameterOperating Ambient Temperature18~28℃
Power DemandSingle phase AC220V 10AThree phase AC380V 10A
Overall Power Consumption3KW
Dimension
（width×length×height）		Mainframe 1200×1000×1610mm
Smoke Dust Exhaust Ventilator 680×650×1550mm
WeightMainframe 350kg
Smoke Dust Exhaust Ventilator 100kg

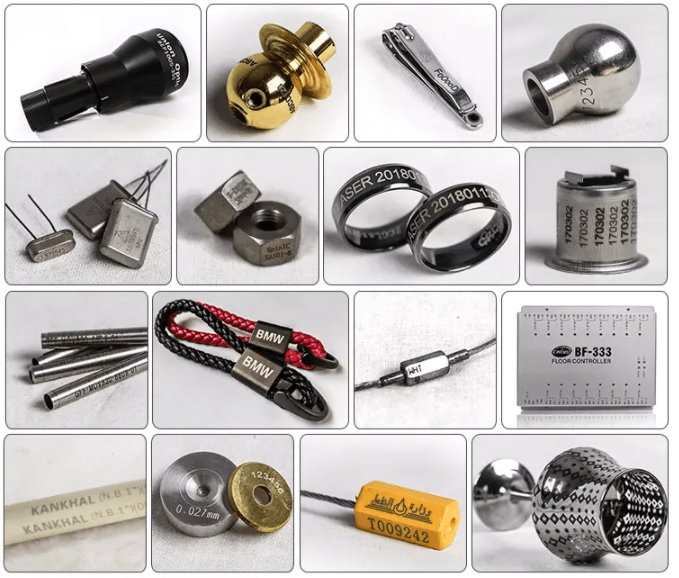

SAMPLES

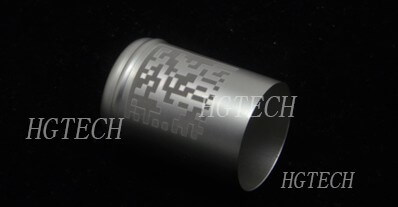

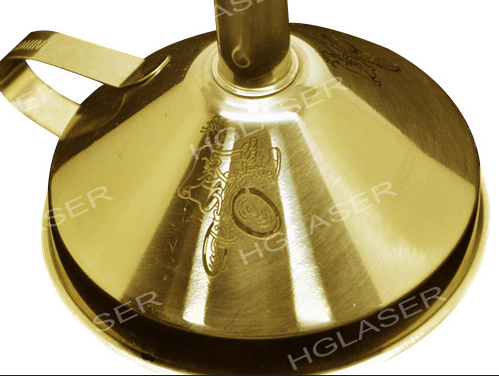

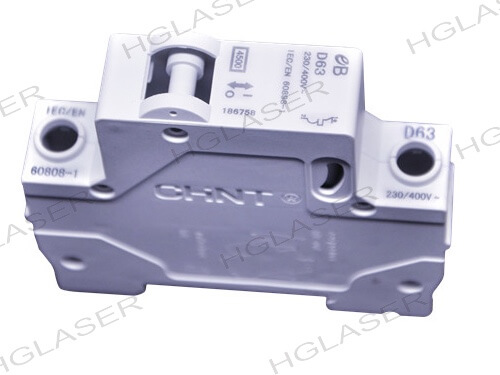

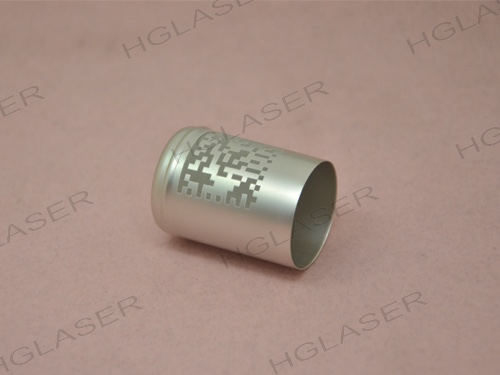

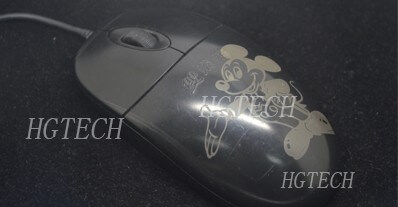

3D MARKING SAMPLE

3D MARKING SAMPLE

3D MARKING SAMPLE

3D MARKING SAMPLE

3D MARKING SAMPLE

3D MARKING SAMPLE

/
