Tire Mold Online Series

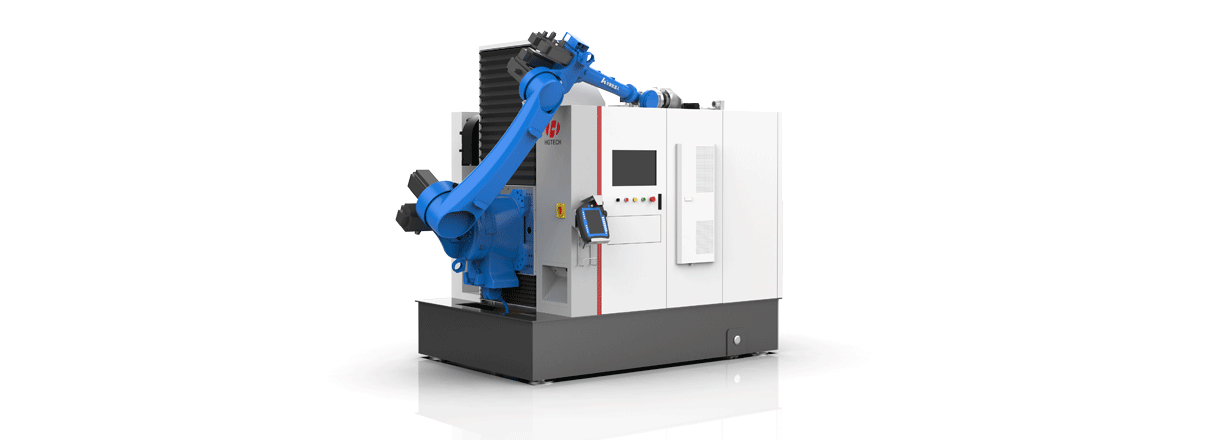

Tire Mold Intelligent Laser Cleaning Equipment

Adopting the form of integrated and shake-controllable mobile vehicle to achieve online cleaning during the production of curing presses without dismantling and removing the molds, saving time,which can significantly improve production efficiency and reduce economic costs.

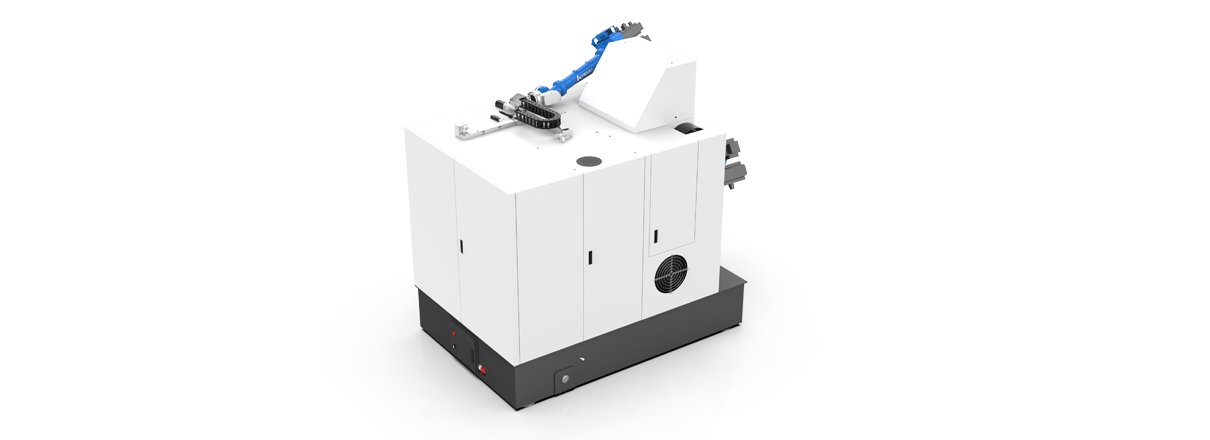

Tire Mold Intelligent Laser Cleaning Equipment
Tire Mold Online Series
Adopting the form of integrated and shake-controllable mobile vehicle to achieve online cleaning during the production of curing presses without dismantling and removing the molds, saving time,which can significantly improve production efficiency and reduce economic costs.

DOWNLOAD CENTER

PRODUCT DATA














Parameters：

Laser Center Wavelength1064nm
Laser average output power≥1000w
Laser typePulsed Fiber Laser, Class 4 Laser Products @GB7247.1
Cleaning moldAll steel, half steel
Cleaning efficiency (approx.)All-steel mold 45±5min Semi-steel mold 25±5min
Cleaning methodonline cleaning
Laser safety level outside the protective cover1Class 1 Laser Products@GB7247.1
Full load power consumption21kW
Size (approx.)2600mm(L)×1300mm(W)×2400mm(H)
Weight (approx.)3000kg





Main Parts：


No.ItemQty.ManufacturerRemark
1Moving Platform (Electric)1HG Farley
2Laser Cleaning Unit1HG Farley
3Robort Unit1Famous brands
4Robort Lifting Axis1HG Farley
5Power1/td>Domestic famous brands
6Chiller System1HG Farley
7Protection Room Unit1HG Farley
8Electrical Control System1HG FarleyIncludes visual


SAMPLES

/
