LUGD Series

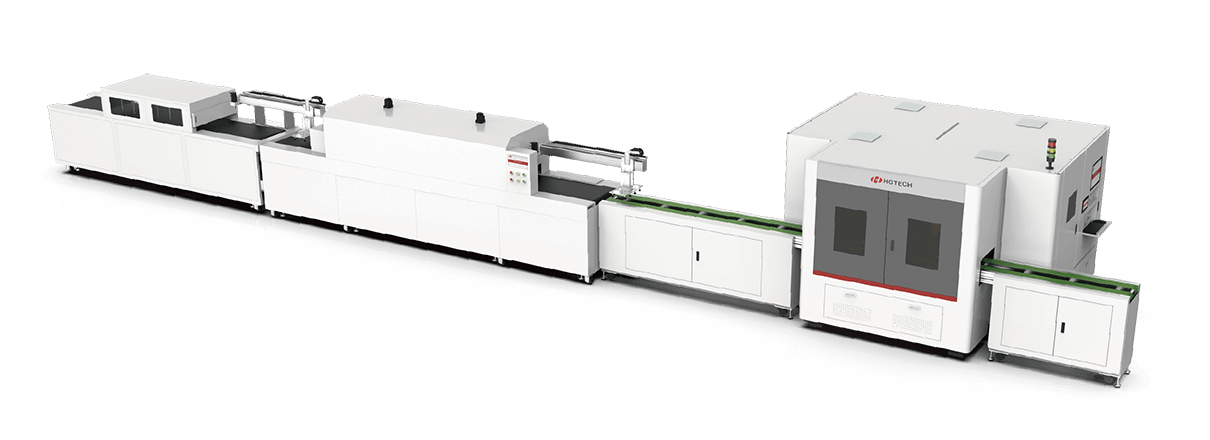

Automobile Rear Mirror Laser Cutting Machine

Adopt laser infrared picosecond filament cutting technology to cut automobile rearview mirrors, replacing cutter wheel cutting, optimizing the existing processing process
Automobile Rear Mirror Laser Cutting Machine
LUGD Series
Adopt laser infrared picosecond filament cutting technology to cut automobile rearview mirrors, replacing cutter wheel cutting, optimizing the existing processing process

DOWNLOAD CENTER

PRODUCT DATA




 High yields

Hot and cold cracks to fall off the finished product easily, and the yield rate is over 99%.


 High speed and high precision linear motor

Fast cutting speed and high precision cutting accuracy <0.05mm


 Self-developed laser source

New infrared picosecond technology with good beam quality, small focusable spot, high power stability and chipping <0.05mm


Compatibility

Compatible with product size within 500*500mm, and compatible with single and double curves





Straight line body

Back type line body

Laser source power

≥40W

Cutting equipment dimension (mm)

180*250mm~450*500mm

Cutting head

HG

Cutting thickness(mm)

<3mm

Linear motor repeat positioning accuracy

±1um

Maximum stroke (axis)

XY Linear motor:1100X800mm

Part dimension of laser cutting

2800mm*2520mm*2300mm(Length*Width*Height)

Overall dimension of the whole machine (including heating spray)

13700mm*2840mm*2300mm(Length*Width*Height)

5500mm*3900mm*2130mm(Length*Width*Height)

Laser cutting part weight

≈5000KG

Overall weight of the whole machine (including heating spray)

≈8500KG

Maximum power of equipment

40KW


SAMPLES

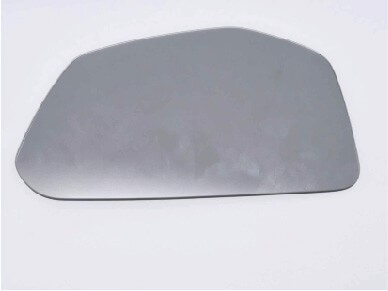

Sample1

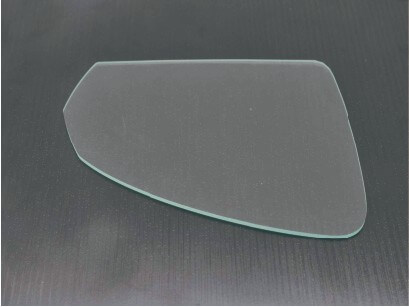

Sample2

/
