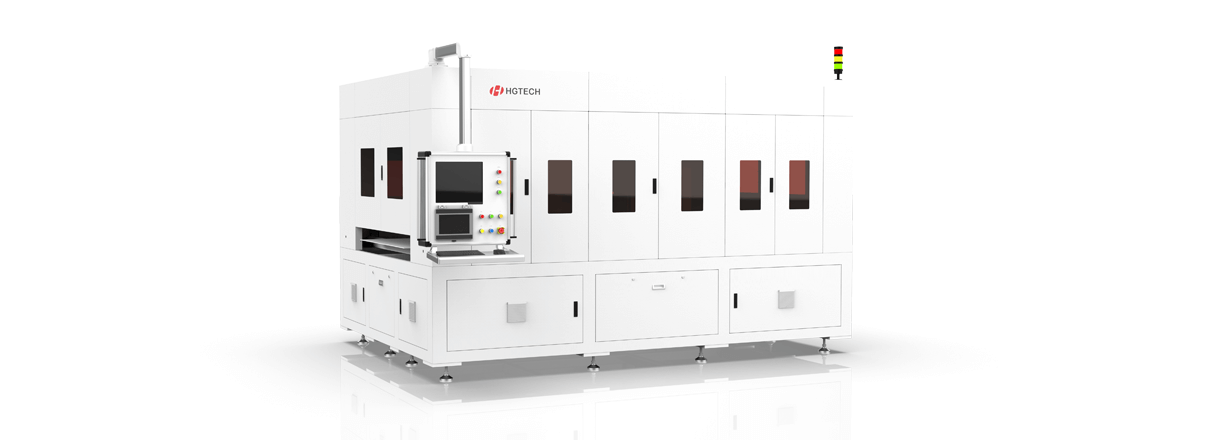

PHOTOVOLTAIC GLASS PUNCHING EQUIPMENT

Photovoltaic Laser Processing

Infrared picosecond laser perforators and short pulse width green light laser perforators are used for laser perforation of hard and brittle materials such as glass and quartz, and have the advantages of high processing yields, 7*24-hour continuous operation and micro-perforation compared to traditional mechanical processing.
Photovoltaic Laser Processing
PHOTOVOLTAIC GLASS PUNCHING EQUIPMENT
Infrared picosecond laser perforators and short pulse width green light laser perforators are used for laser perforation of hard and brittle materials such as glass and quartz, and have the advantages of high processing yields, 7*24-hour continuous operation and micro-perforation compared to traditional mechanical processing.

DOWNLOAD CENTER

PRODUCT DATA


  • • Adopting an imported picosecond/short pulse width laser, good beam quality, small focus spot, high stability

  • • The machine can be equipped with a multi-vibration lens system to reduce the laser processing time

  • • The optical path system uses an imported high speed oscillator and mirror to ensure high quality optical transmission, high processing accuracy and long term stability

  • • The quartz base with high precision linear motors and vision positioning system allows for a high degree of efficiency and precision in stable processing.

  • • Specially designed automatic loading and unloading system

  • to save effort and increase efficiency



ITEM

PARAMETERS



Laser system

Power

＞40W

Laser pulse

＜10ns

Laser source

Imported nanosecond green light

Main

configuration

Cutting head

Three head

Fθ lens BOX range

50mmx50mm

Equipment

performance

Processing size Range

1000x500-2200x1200mm

Processing hole position accuracy

＜±0.2mm

The processing time

＜7s



Operational

environment

Power supply

220V/50HZ

Environment

temperature：10-30℃ humidity：＜50%

Size

length3700mm*width2500mm*height2000mm

Weight

4200KG


SAMPLES

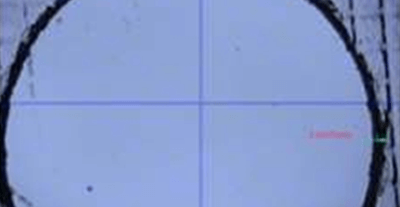

Sample 1

/
