SOLAR PV-SCREEN PRINTING GRID VERSION FILM CUTTING EQUIPMENT

Photovoltaic Laser Processing

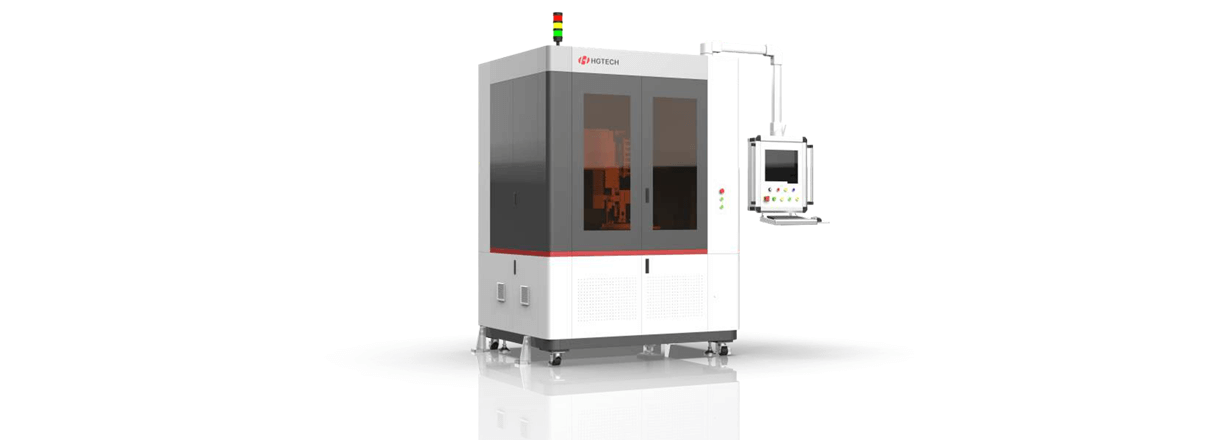

The Solar PV-Screen Printing Grid Version Film Cutting Equipment is used for laser patterning of thin films for the upstream photovoltaic grid manufacturers. It consists of a quartz frame, XY linear motor platform, vision capture system, ultrafast laser system and cooling system.

Photovoltaic Laser Processing
SOLAR PV-SCREEN PRINTING GRID VERSION FILM CUTTING EQUIPMENT

The Solar PV-Screen Printing Grid Version Film Cutting Equipment is used for laser patterning of thin films for the upstream photovoltaic grid manufacturers. It consists of a quartz frame, XY linear motor platform, vision capture system, ultrafast laser system and cooling system.

DOWNLOAD CENTER

PRODUCT DATA


  • • Uniqueness: a unique light path system can be designed according to the characteristics of the grid lines

  • • High speed oscilloscope processing, extremely fast scanning

  • • Highly compatible: according to the customer's need to switch

  • between different sizes

  • • High stability:7*24H long-lasting platform stability

  • • Safe and environmentally friendly: no water discharge problems

  • • High quality: no steel damage, adjustable line width



ITEM

PARAMETERS



Laser system

Laser source

Ultraviolet355nm

Power

10W

Smallest focused spot

6um

Main

configuration

Working table

Dual linear motor stages

Vision Systems

CCD positioning for trades

Equipment

performance

Processing size Range

300mmx300mm

Line width tolerance

≤±1um

Splicing accuracy

≤±2um



Operational

environment

Power supply

220V/50HZ

Environment

temperature：10-30℃ humidity：＜50%

Size

1700mm*1800mm*2400mm

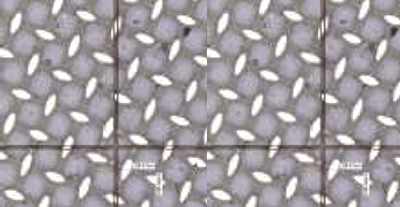

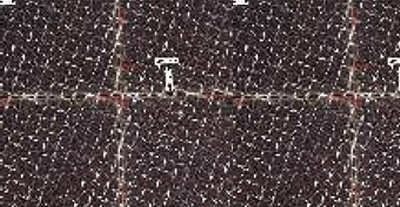

SAMPLES
