Profile Series

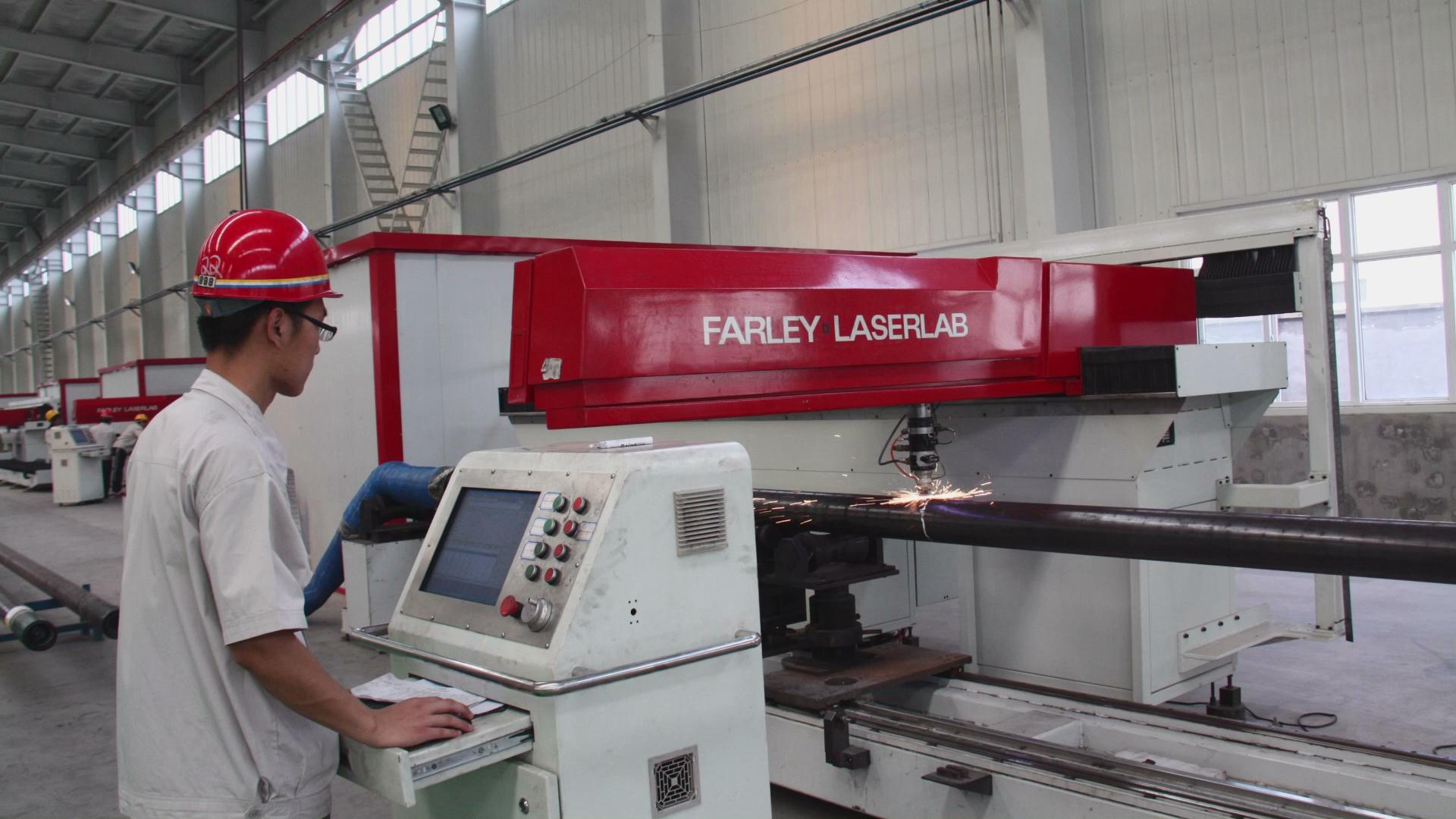

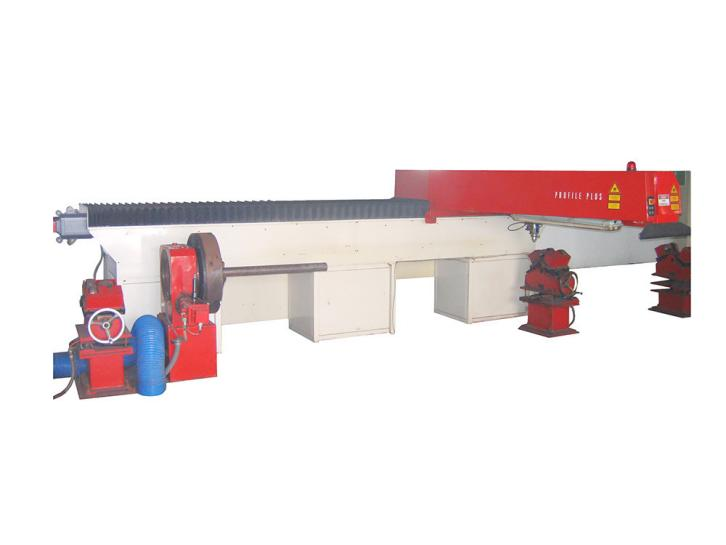

OIL SLOTTED CASING PIPE LASER CUTTING MACHINE

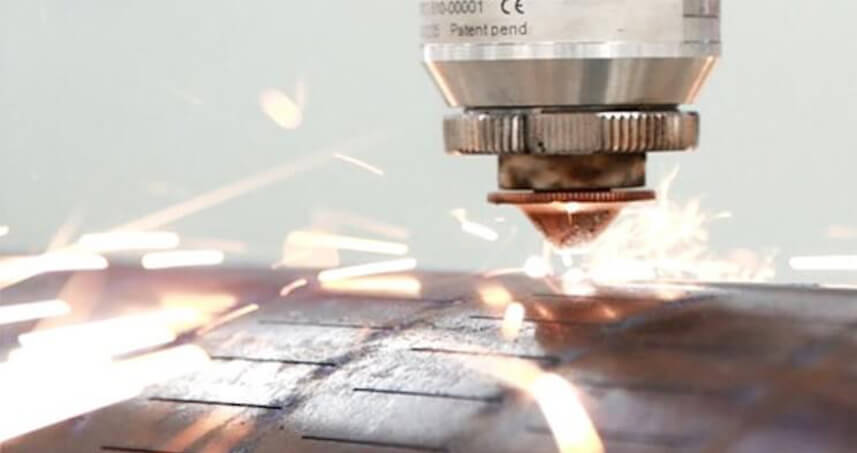

Oil slotting pipe is the key part to protect from sand during oil mining. Oil slotting pipe can be classified into five types: bridge type oil slotting pipe, drilling slotting pipe, kerf slotting pipe, composted pipe, wire-wrapped slotting pipe. Oil slotted casing pipe is cut by specialized ultra-thin cutting disk and laser beam. There are many certain configurations kerfs with shape of longitudinal or helical straight line on oil slotted casing pipe.Farley Laserlab oil slotting pipe laser cutting machine adopts advanced technology, which can cut different type of oil slotting pipe. By means of focusing, high density and high-power laser beam working on sieve pipe, on the premise of exceeding a threshold value of laser power density, heat energy from working gas and laser beam’s chemical reaction is absorbed by material, thus causing a dramatic increase in the temperature of laser sport on the surface of the casing, partial melting or gasification of workpiece material to form a hole, then relative motion of the casing and laser beam can achieve casing cutting.
