The self-developed software can directly connecting information system of our customer. Marking input information can not only generated automatically by software, but also be received through network. It can be integrated with SMT online operation and automatic off-board workstation.

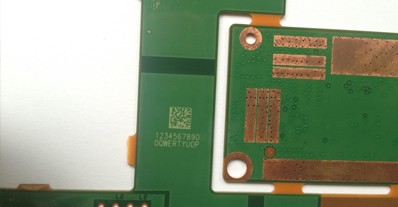

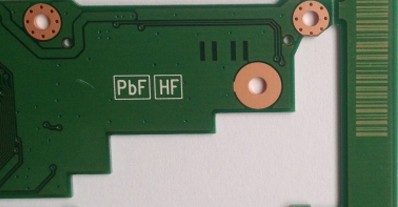

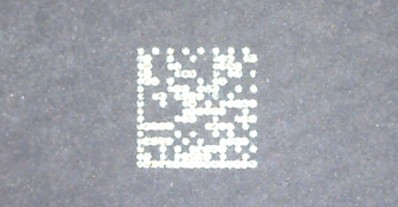

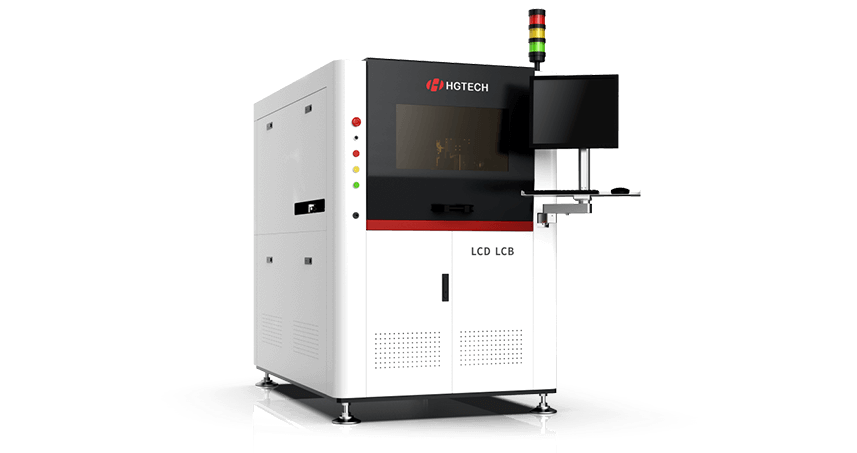

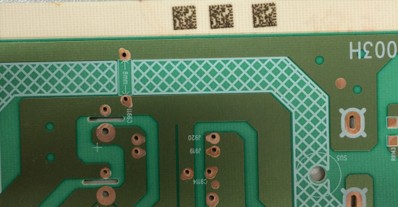

Comparing with label and printing, laser marking can record PCB information by marking serial number and barcode for quality control of electronic product. PCB Laser Marking Machines in  different types are suitable for PCB marking of large area and  irregular shape board or thin plate as well as multi-marking on one-side or multi-board in high efficiency and speed.

● High-performance CO2 / Fiber laser has high-quality laser beam, small focusing spots and well-distributed power.
● The high-pixel CCD camera makes automatic positioning, identification and feedback reporting come true.
● Gantry structure and synchronous transmission guideways ensure the stable and precision performance.
● The function of automatic focusing and track width adjusting are designed to match up different production line.

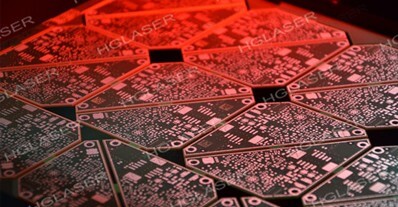

Application: Large-area PCB online marking

PCB Laser Marking Machine can record PCB information by marking serial number and barcode for quality control of electronic product.
