Customer Needs
Due
to the current primary methods of secondary processing for structural
steel being manual cutting and drilling, large components are mainly
produced through plate assembly welding. In the process of welding and
processing steel, after the cutting process, assembly is carried out.
Therefore, the entire process is characterized by low efficiency,
cumbersome manual operations, and poor precision. However, a new
technology is coming to solve the problems.

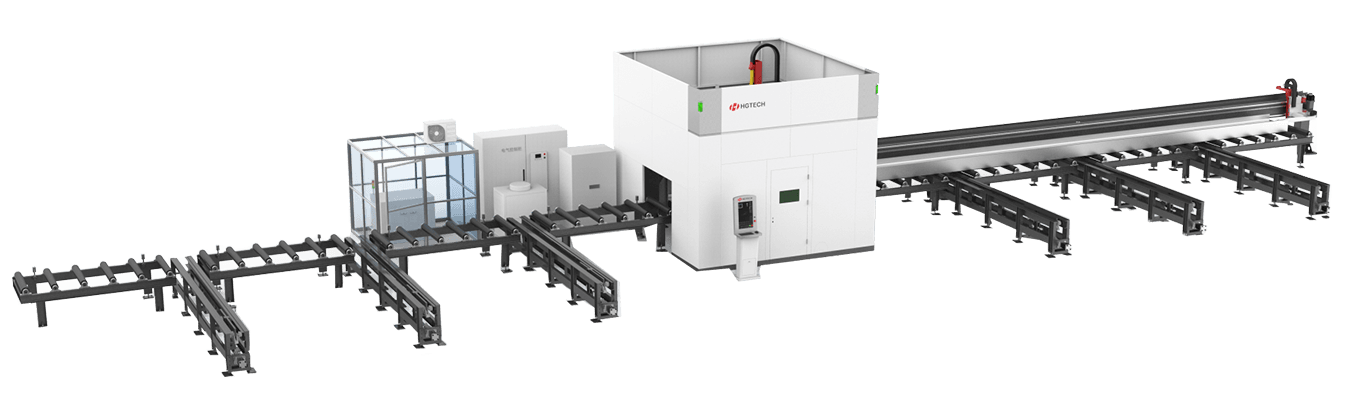

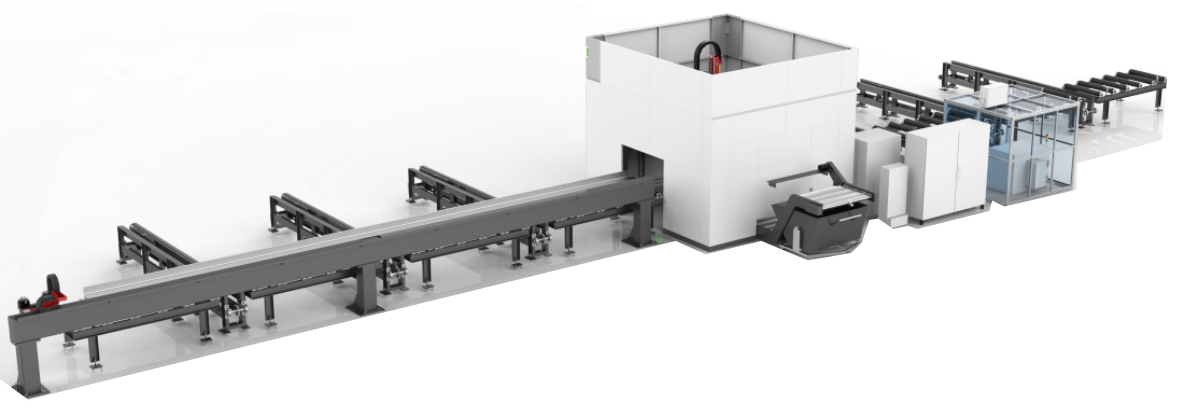

Product Description
As
specialized processing equipment for structural steel, this product is
suitable for the three-dimensional cutting of various profiles in the
steel structure industry (such as H-beams, channel steel, angle steel,
and T-beams). It is widely used in the processing industry of steel
components, such as various large-span industrial plants and
prefabricated buildings in the steel structure industry, engineering
machinery, the power industry, the shipbuilding (ship frame) industry,
the iron and steel industry, the road and bridge industry, as well as
warehousing and heavy equipment.
-
- Intelligent Manufacturing
Use
laser measurement and compensation device to to transfer the collected
data to the CNC system, performing corresponding position compensation
and improving 3D cutting accuracy;
The
automatic steel cutting production line adopts the form of mobile
processing of workpieces and static cutting after precise segmental
pushing;
-
- Multi-functional Integration
Various functions can be achineved in one machine.
Extended Functions
Industry Application
Intelligent
equipment for laser cutting of structural steel is primarily applied in
the steel structure industry, demonstrating excellent processing
results for I-beams, H-beams, channel steel, and angle steel. It can
achieve beveling, cutting, punching, and marking processing for the
flange and web of H-beams, and can perform rootless cutting for
overwelding holes or locked joints. Automated equipment can be
integrated with assembly welding equipment to form an automatic steel
processing line, reducing labor and significantly enhancing the
efficiency of steel processing.
Case Study
